DIY Morse Key

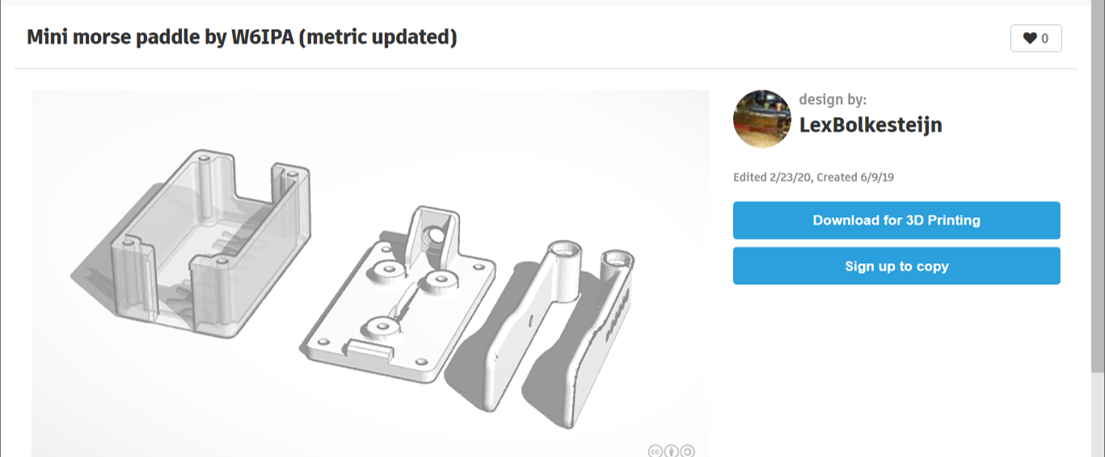

TinkerCAD Mini morse paddle by W6IPA

MorseKey1

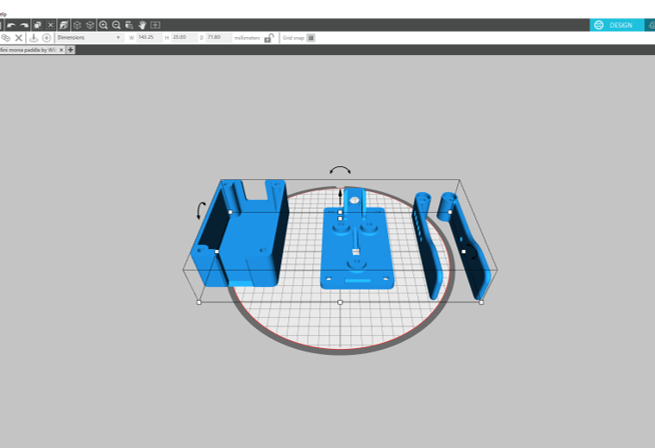

Had to split file in to three parts to fit bed

  • Lid  2 hours 16 minutes standard,
    1 hour 19 minutes draft.
  • Base 59 minutes standard,
    36 minutes draft.
  • Paddles 58 minutes standard,
    32 minutes draft.



MorseKey2

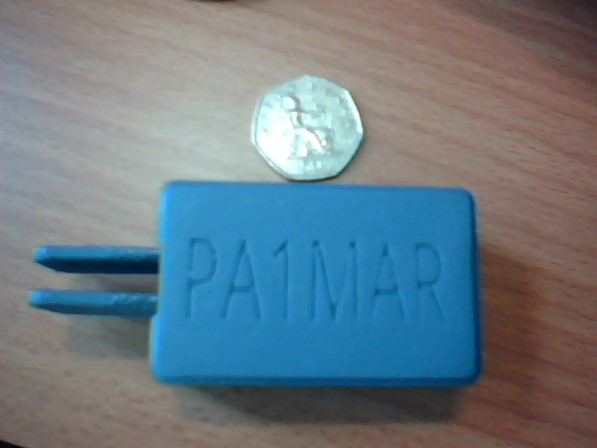

PA1 MAR Dual paddle Morse key

MorseKey3

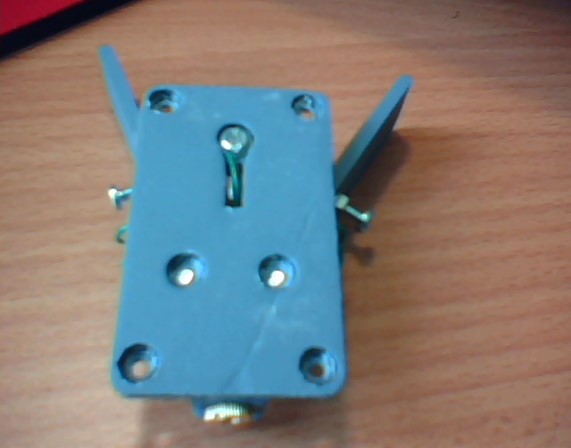

MorseKey4

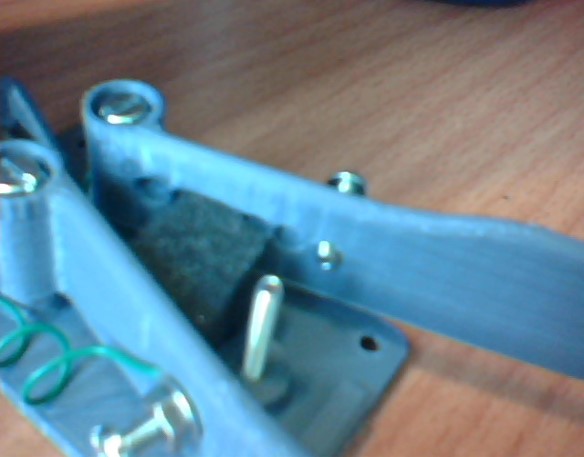

Paddle contacts

MorseKey6

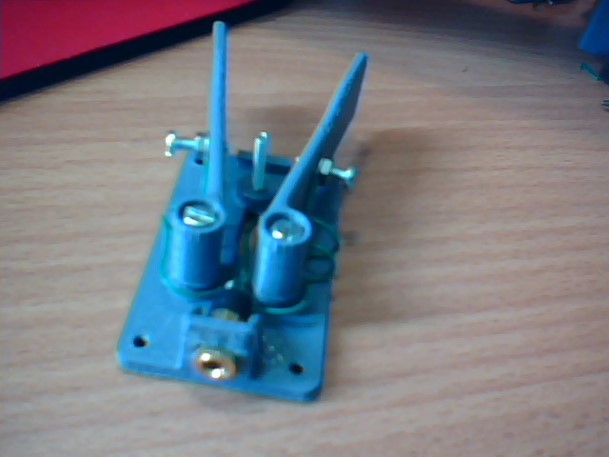

MorseKey5
